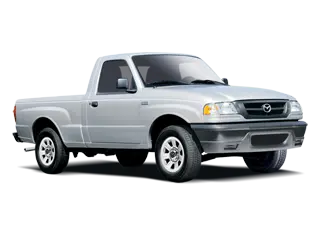

Resources for the Repair and Maintenance of your Mazda B2300
Mazda B2300 Models:
Mazda B2300 Problems
Crank but No Start Condition and No Fuel Pressure
If the engine cranks but does not start, it may be caused by a tripped inertia switch. Switch the key to "ON" and the fuel pump should be heard running for a second or two. Listen at the gas filler if necessary. The inertia switch is located on the firewall and can be tripped when the parking brake is set too hard and then released. The inertia switch should be reset, and will click when it is reset.
Runs Poorly, Possible Check Engine Light
A dirty, or contaminated mass airflow (MAF) sensor can cause the engine to run poorly. There may be a Check Engine Light with trouble codes relating to the MAF sensor. In some cases, carefully cleaning the sensor element will fix the problem, but replacement may be required.
Rough Running Idle, ABS Light Illuminated, Check Engine Light, and Automatic Transmission Shifting Problems
Water intrusion into a connector (X309) located under the cab, beneath the driver's seat, can cause a rough idle, ABS Light and Check Engine Light illumination, and automatic transmission shifting problems. If needed, connector repair parts are available from Mazda dealers, and possibly some Ford dealers.
Crank but No Start Condition and No Spark
The engine may fail to start due to an electrically shorted sensor. Some of the sensors may internally short and not blow any fuses. A technician may find no spark and no operation of the fuel injectors in the diagnosis. One way a technician may isolate the defective sensor is by disconnecting sensors one by one to see if the engine starts.
Check Engine Light Illuminated, code P0340
The Check Engine Light may come on with a trouble code for the Cam Position Sensor (CMP), P0340. This can be caused by the negative battery cable being too close to the sensor. The cable should be repositioned, clear the trouble code, and verify that the cable is causing the problem.
Mazda B2300 Recalls (Recent)
Mazda B2300 Recall 01V227002
Summary: VEHICLE DESCRIPTION: LIGHT DUTY TRUCKS EQUIPPED WITH SEAT BELTS SUPPLIED BY TRW. IT IS POSSIBLE THAT THE DRIVER'S AND/OR FRONT PASSENGER'S OUTBOARD SEAT BELT BUCKLE MAY NOT FULLY LATCH. FORD CROWN VICTORIA BUILT AT ST. THOMAS ASSEMBLY PLANT FROM 4/17/00 - 5/29/01 MERCURY GRAND MARQUIS BUILT AT ST. THOMAS ASSEMBLY PLANT FROM 4/17/00 - 5/29/01. LINCOLN TOWN CARS BUILT AT WIXOM ASSEMBLY PLANT FROM 3/27/00 - 5/30/01. LINCOLN NAVIGATORS BUILT AT MICHIGAN TRUCK PLANT FROM 4/11/00 - 5/31/01. FORD WINDSTARS BUILT AT OAKVILLE ASSEMBLY PLANT FROM 3/23/00 - 5/30/01. FORD RANGERS BUILT AT TWIN CITIES PLANT FROM 3/28/00 - 5/30/01, AND ALSO AT THE EDISON PLANT FROM 3/13/00 - 5/25/01. FORD F-150 TRUCK BUILT AT NORFOLK PLANT FROM 4/18/00 - 5/25/00; AT ONTARIO PLANT FROM 5/10/00 - 5/28/01; AT KANSAS CITY PLANT FROM 9/11/99 - 5/25/01; AND AT CUAUTITLAN PLANT FROM 5/16/00 - 6/9/01. FORD SUPER DUTY F-250, F-350, F-450, AND F-550 TRUCKS BUILT AT KENTUCKY PLANT FROM 4/17/00 - 5/27/01; AND AT CUAUTITLAN PLANT FROM 5/16/00 - 6/19/01. FORD EXCURSIONS BUILT AT KENTUCKY PLANT FROM 4/17/00 - 10/2/00. FORD EXPEDITIONS BUILT AT MICHIGAN TRUCK PLANT FROM 4/11/00 - 5/31/01.
Learn more »Mazda B2300 Recall 96V024002
Summary: THE STUDS WHICH ATTACH THE BRAKE MASTER CYLINDER TO THE POWER BRAKE VACUUM BOOSTER ASSEMBLY CAN DEVELOP STRESS CORROSION CRACKING AFTER BEING OPERATED FOR AN EXTENDED PERIOD OF TIME IN THE SOUTHERN CALIFORNIA LOCATION.
Learn more »Ford Recalls Firestone Wilderness AT and Radial ATX Tires on Multiple Trucks and SUVs
RepairPal Expert Overview:
Ford has recalled Firestone Wilderness AT and Radial ATX tires installed on multiple lines of Ford trucks from 1991 to 2000. On some tires, under extreme conditions, the tread could separate, which can cause immediate tire failure. This may lead to a loss of vehicle control, injury, and death. Dealers replaced the affected tires.
Learn more »Mazda B2300 Recall 95V231002
Summary: DURING EXTREME COLD, NORTHERN CLIMATE WINTER CONDITIONS, ICE CAN FORM IN THE THROTTLE BODY OF THE ENGINE CAUSING THE THROTTLE PLATE TO REMAIN IN THE HIGHWAY CRUISING POSITION AFTER THE ACCELERATOR IS RELEASED OR THE SPEED CONTROL IS DEACTIVATED.
Learn more »Mazda B2300 Recall 94V111002
Summary: THE FRONT FUEL LINES HAVE A SECTION OF FLEXIBLE HOSE THAT IS SUSCEPTIBLE TO CRACKING WHICH CAN ALLOW FUEL LEAKAGE.
Learn more »Mazda B2300 Questions and Answers
How come I still don't have pressure after replacing master,slave cylinder? I have bled 2 quarts of brake fluid through the system and still don't have pressure. I do have suction at the ...
Which sensor regulates the fuel/air mix and how much does it cost?
The engine won't start sometimes. The motor turns over very fast but won't crank. This happens more often if it is turned off and tried to crank up to 5 minutes afret being turned off.
My truck has been getting very bad gas milage. I have tried injection cleaners and a tune up. The truck is getting 13 miles per gallon; that is not good for that kind of truck. I have had it dianos...
Which sensor/part acts as the points, as in an older car? Sometimes the motor won't start. It seems like the points need changed but there are no points. After a few minutes of not trying to c...
Mazda B2300 Reviews
I've owned several Ford Rangers and was looking for a 4 cyl 5 speed. Found it to be a Mazda b2300 and bought it. Having trouble with the cruise control working, checked fuse and brake switch. Any suggestions?
Tony
My mother has had this truck since i was six. She used it to haul news papers around for about 7 years. There has been almost no problems with it. It was recently passed on to me and I've been driving it for a few months now. So far the only problem I've had is that the gas gauge is bipolar. Besides that its an amazing truck. Its small but can haul a lot of weight. I love it and i wouldn't trade it for anything.
I have driven this truck for over 10 years and it has been the best vehicle, I have ever owned. I have little to no problems with it. I have only had to change oxygen sensors and now I need clutch work.
OK truck,had to rebuild front end,not shifting smoothly,misses at first start up,needs to warm up.BUT it tows my boat very well.good gas mileage -24 to 28 mpg.has not left me on the side of the road yet.if i took the time to fix all the little problems it would be an awesome truck.
260k , totaled by the insurance co, and still going strong! Can't wait to get to 500k! Great truck!
