Resources for the Repair and Maintenance of your 1995 Mazda B2300

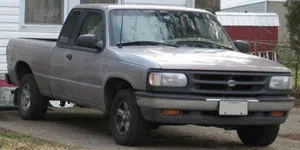

1995 Mazda B2300

Image for car images Mazda 1994 1997 Mazda B2300 size thumb

1995 Mazda B2300 Problems

Engine -- Verified

If the engine cranks but does not start, it may be caused by a tripped inertia switch. Switch the key to "ON" and the fuel pump should be heard running for a second or two. Listen at the gas filler if necessary. The inertia switch is located on the firewall and can be tripped when the parking brake is set too hard and then released. The inertia switch should be reset, and will click when it is reset.

Engine -- Verified

The engine may fail to start due to an electrically shorted sensor. Some of the sensors may internally short and not blow any fuses. A technician may find no spark and no operation of the fuel injectors in the diagnosis. One way a technician may isolate the defective sensor is by disconnecting sensors one by one to see if the engine starts.

Engine -- Verified

Water intrusion into a connector (X309) located under the cab, beneath the driver's seat, can cause a rough idle, ABS Light and Check Engine Light illumination, and automatic transmission shifting problems. If needed, connector repair parts are available from Mazda dealers, and possibly some Ford dealers.

Engine -- Verified

A dirty, or contaminated mass airflow (MAF) sensor can cause the engine to run poorly. There may be a Check Engine Light with trouble codes relating to the MAF sensor. In some cases, carefully cleaning the sensor element will fix the problem, but replacement may be required.

Engine -- Verified

The Check Engine Light may come on with a trouble code for the Cam Position Sensor (CMP), P0340. This can be caused by the negative battery cable being too close to the sensor. The cable should be repositioned, clear the trouble code, and verify that the cable is causing the problem.

1995 Mazda B2300 Recalls (Recent)

Drive Train, August 26, 2000

RepairPal Expert Overview:

Ford has recalled Firestone Wilderness AT and Radial ATX tires installed on multiple lines of Ford trucks from 1991 to 2000. On some tires, under extreme conditions, the tread could separate, which can cause immediate tire failure. This may lead to a loss of vehicle control, injury, and death. Dealers replaced the affected tires.

Learn more »

Electrical & Lights, December 11, 2009

Summary: MAZDA IS RECALLING MODEL YEAR 1995 THROUGH 1997 AND MODEL YEAR 2001 THROUGH 2003 TRUCKS EQUIPPED WITH TEXAS INSTRUMENTS SPEED CONTROL DEACTIVATION SWITCH (SCDS) AND/OR ANTI-LOCK BRAKE SYSTEM (ABS) AND MANUFACTURED ON OR BEFORE DECEMBER 5, 2002. A COMPONENT OF THE CRUISE CONTROL DEACTIVATION SWITCH MAY DETERIORATE OVER TIME AND DEVELOP A LEAK. THIS OCCURRENCE COULD CAUSE THE SWITCH TO OVERHEAT, SMOKE OR BURN WHICH COULD RESULT IN AN UNDER HOOD FIRE.

Learn more »

1995 Mazda B2300 Questions and Answers

rocky1, 1995 Mazda B2300, Mckinleyville, CA

the only way wipers work is on high speed

htr4life, 1995 Mazda B2300, 2.3L 4 Cylinder, Henderson, NV

my 95 b2300 runs fine and starts right up but sometimes if it idles too long at a stop light it will idle real rough then die. what could it be

Visitor, 1995 Mazda B2300, 2.3L 4 Cylinder, Dallas, GA

have changed the fuel pump, put new o rings in the injectors, checked vacumn lines and the fuel keeps running into the motor.

Visitor, 1995 Mazda B2300, 2.3L 4 Cylinder, Decatur, AL

only had the truck for 3 months. brake lights worked. got pulled over for no brake lights and was told to get them looked at. i changed the bulbs myself, didnt work. checked all the fuses, didnt wo...

Trucker03, 1995 Mazda B2300, 2.3L 4 Cylinder, Olympia, WA

Where is the oil drain plug located

Write a Review About Your Car

1995 Mazda B2300 Reviews

OK truck,had to rebuild front end,not shifting smoothly,misses at first start up,needs to warm up.BUT it tows my boat very well.good gas mileage -24 to 28 mpg.has not left me on the side of the road yet.if i took the time to fix all the little problems it would be an awesome truck.

260k , totaled by the insurance co, and still going strong! Can't wait to get to 500k! Great truck!
