Resources for the Repair and Maintenance of your 2006 Mazda B2300

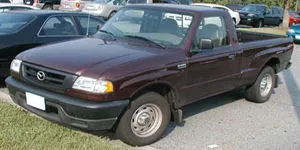

2006 Mazda B2300

Image for car images Mazda 1998 2006 Mazda B2300 size thumb

2006 Mazda B2300 Problems

Engine -- Verified

If the engine cranks but does not start, it may be caused by a tripped inertia switch. Switch the key to "ON" and the fuel pump should be heard running for a second or two. Listen at the gas filler if necessary. The inertia switch is located on the firewall and can be tripped when the parking brake is set too hard and then released. The inertia switch should be reset, and will click when it is reset.

Engine -- Verified

The engine may fail to start due to an electrically shorted sensor. Some of the sensors may internally short and not blow any fuses. A technician may find no spark and no operation of the fuel injectors in the diagnosis. One way a technician may isolate the defective sensor is by disconnecting sensors one by one to see if the engine starts.

Engine -- Verified

Water intrusion into a connector (X309) located under the cab, beneath the driver's seat, can cause a rough idle, ABS Light and Check Engine Light illumination, and automatic transmission shifting problems. If needed, connector repair parts are available from Mazda dealers, and possibly some Ford dealers.

Engine -- Verified

A dirty, or contaminated mass airflow (MAF) sensor can cause the engine to run poorly. There may be a Check Engine Light with trouble codes relating to the MAF sensor. In some cases, carefully cleaning the sensor element will fix the problem, but replacement may be required.

Engine -- Verified

The Check Engine Light may come on with a trouble code for the Cam Position Sensor (CMP), P0340. This can be caused by the negative battery cable being too close to the sensor. The cable should be repositioned, clear the trouble code, and verify that the cable is causing the problem.

2006 Mazda B2300 Recalls (Recent)

Body, Interior & Misc., November 28, 2005

RepairPal Expert Overview:

The windshield wiper may have been produced without grease applied to the output shaft gear. After a period of continuous use on the high speed setting, this lack of grease could cause the gear teeth to distort or fracture, resulting in the loss of wiper function. An inoperative wiper during inclement weather conditions could cause a crash due to impaired visibility. Dealers will inspect the wiper motor for the presence of grease. Grease will be applied to the wiper motor gears if necessary. The Mazda recall number is 3705K.









Learn more »

2006 Mazda B2300 Questions and Answers

shakespere, 2006 Mazda B2300, Port Byron, IL

air filter assembly is blocking access to bulb.it's plastic and don't want to muscle off and risk breakage. seeking disassembly info to replace bulb

Visitor, 2006 Mazda B2300, Bayonne, NJ

dome light wont shut off dont know why...key is out doors shut

bill jake, 2006 Mazda B2300, Bend, OR

I put the key in, push the clutch to the floor, turn the key to the start and it sometimes does nothing. After several tries it may start up fine. The starter turns fine. Is this an ignition pro...
