Resources for the Repair and Maintenance of your 1996 Mazda B2300

1996 Mazda B2300

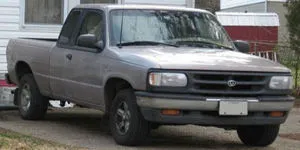

Image for car images Mazda 1994 1997 Mazda B2300 size thumb

1996 Mazda B2300 Problems

Engine -- Verified

If the engine cranks but does not start, it may be caused by a tripped inertia switch. Switch the key to "ON" and the fuel pump should be heard running for a second or two. Listen at the gas filler if necessary. The inertia switch is located on the firewall and can be tripped when the parking brake is set too hard and then released. The inertia switch should be reset, and will click when it is reset.

Engine -- Verified

The engine may fail to start due to an electrically shorted sensor. Some of the sensors may internally short and not blow any fuses. A technician may find no spark and no operation of the fuel injectors in the diagnosis. One way a technician may isolate the defective sensor is by disconnecting sensors one by one to see if the engine starts.

Engine -- Verified

Water intrusion into a connector (X309) located under the cab, beneath the driver's seat, can cause a rough idle, ABS Light and Check Engine Light illumination, and automatic transmission shifting problems. If needed, connector repair parts are available from Mazda dealers, and possibly some Ford dealers.

Engine -- Verified

A dirty, or contaminated mass airflow (MAF) sensor can cause the engine to run poorly. There may be a Check Engine Light with trouble codes relating to the MAF sensor. In some cases, carefully cleaning the sensor element will fix the problem, but replacement may be required.

Engine -- Verified

The Check Engine Light may come on with a trouble code for the Cam Position Sensor (CMP), P0340. This can be caused by the negative battery cable being too close to the sensor. The cable should be repositioned, clear the trouble code, and verify that the cable is causing the problem.

1996 Mazda B2300 Recalls (Recent)

Drive Train, August 26, 2000

RepairPal Expert Overview:

Ford has recalled Firestone Wilderness AT and Radial ATX tires installed on multiple lines of Ford trucks from 1991 to 2000. On some tires, under extreme conditions, the tread could separate, which can cause immediate tire failure. This may lead to a loss of vehicle control, injury, and death. Dealers replaced the affected tires.

Learn more »

Electrical & Lights, December 11, 2009

Summary: MAZDA IS RECALLING MODEL YEAR 1995 THROUGH 1997 AND MODEL YEAR 2001 THROUGH 2003 TRUCKS EQUIPPED WITH TEXAS INSTRUMENTS SPEED CONTROL DEACTIVATION SWITCH (SCDS) AND/OR ANTI-LOCK BRAKE SYSTEM (ABS) AND MANUFACTURED ON OR BEFORE DECEMBER 5, 2002. A COMPONENT OF THE CRUISE CONTROL DEACTIVATION SWITCH MAY DETERIORATE OVER TIME AND DEVELOP A LEAK. THIS OCCURRENCE COULD CAUSE THE SWITCH TO OVERHEAT, SMOKE OR BURN WHICH COULD RESULT IN AN UNDER HOOD FIRE.

Learn more »

1996 Mazda B2300 Questions and Answers

b2300owner, 1996 Mazda B2300, Zanesville, OH

having trouble removing the nut on the cam pulley . what is the best way to remove it?

Nana5, 1996 Mazda B2300, Spartanburg, SC

replaced FP but car still will not start - any tips on what to check next? Know for sure it was the FP bad.

tlmas324, 1996 Mazda B2300, Newnan, GA

i have a 1996 mazda 2300, it was making a sqealing noise when first cranked up and if i turned the heat or air on it would worsen, but after it got warm it would stop. Now it will not keep a charge.

Drew101, 1996 Mazda B2300, 2.3L 4 Cylinder, Arvada, CO

Electrical system has a constant 200mA drain. When I pull fuse #25, it stops draining. Replaced GEM but problem still persists. Wipers run without ignition being on but very slowly. I think this du...

Visitor, 1996 Mazda B2300, 2.3L 4 Cylinder, Warrior, AL

Yesterday engine quit due to broke timing belt, had it towed home ,replaced belt and it has a ticking noise at cam cover,is there damage to valves and pistons, and what needs to be done?

Write a Review About Your Car

1996 Mazda B2300 Reviews

My mother has had this truck since i was six. She used it to haul news papers around for about 7 years. There has been almost no problems with it. It was recently passed on to me and I've been driving it for a few months now. So far the only problem I've had is that the gas gauge is bipolar. Besides that its an amazing truck. Its small but can haul a lot of weight. I love it and i wouldn't trade it for anything.

Exellent truck, just have problems with emission pump. Great for hauling Dirt Bike! Tires are a bitch to find!
