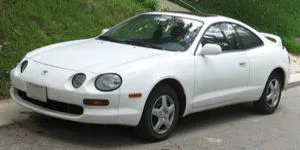

1994 Toyota Celica Repair and Maintenance
A guide to problems, costs, maintenance and repair for your 1994 Toyota Celica
Verified by mechanics, reported by drivers like you
Ask a mechanic in our community
Never overpay. Check prices with our estimator
1994 Toyota Celica ProblemsABS Warning Light Due to Failed Wheel Speed Sensor
At higher mileages, an anti-lock brake system wheel speed sensor may wear out and illuminate the ABS warning light. It is recommended to replace the sensor with a factory part and be sure to clean all rust and debris from the mounting area because the mounting distance is critical. Failure to do so may result in the new sensor setting false trouble codes. Be sure to check the condition and runout of the front wheel bearings on the 2WD and 4WD vehicles and the CV joints on the 4WD vehicles since worn wheel bearings and/or CV joints can cause the ABS trigger rings to rub against the ABS sensors and damage them.
The EGR System tends to get restricted or blocked with carbon after 100,000- 125,000 miles which will cause an emissions test failure for NOX. If the EGR system is equipped with an EGR temperature sensor it will trigger a Check Engine Light for improper EGR flow. The repair is to clean out the EGR passages and the EGR Temperature sensor. Our technicians tell this repair is pretty straight forward and takes about 1-1.5 hours. It is also wise to verify the EGR system components i.e. the Transducer, EGR Valve and VSV Solenoid at this time.
1994 Toyota Celica QuestionsI replaced altenator now after getting warm it shuts off (1 answer)
I replaced altenator it started ran great then it shut off all power it will turn over but not start I then replaced fuel pump fuel filter had the ignition control module tested its good no cheek engine lites no codes I'm lost as to what or why can u give me any advice and what doe the cadila...
I replaced the altenator everything was fine The 3 prong plug broke now all of a sudden I'm driving and look down no lites were on but temp gauge was all the way no bubleing no sign at all I pulled over no signs I take off it dies the fans were not coming on eigther so I'm at a loss with ...
It has a red with blue stripe
A solid white wire
And a solid yellow wires
