Resources for the Repair and Maintenance of your 2009 Saturn Outlook

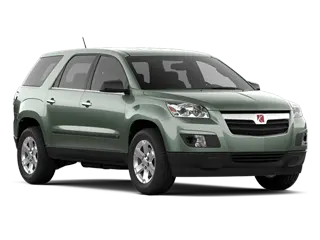

2009 Saturn Outlook

Image for car images Saturn 2007 2009 Saturn Outlook size thumb

2009 Saturn Outlook Problems

Drive Train -- Verified

Vehicles with a 6speed automatic transmission may develop one or more of the following faults related to a broken 35R clutch wave plate inside the transmission: Illumination of the Check Engine Light with code P0716, P0776, P0717, P0777, P2714, P2715, and/or P02723, loss of reverse gear, slipping or harsh 3rd or 5th gear shift. Removal and dis-assembly of the transmission will be required to replace the broken 35R wave plate. It ...

Exhaust & Emissions -- Verified

A Loose or worn gas cap may cause Check Engine Light to illuminate.

Engine -- Verified

Vehicles with certain V6 engines may illuminate the Check Engine Light one or more of the following codes: P0011, P0014, P0021, P0024, P0341, P0346, P0336, or P0391. Our technicians tell us that some vehicles may require a powertrain control module (PCM) software update to correct this issue. Other vehicles may have excess camshaft end play on one or both cylinder heads which will need to be corrected using special procedures outlined by GM.

Maintenance -- Verified

Brake fluid can become dirty and may cause problems in the brake system; it should be flushed every 60,000 miles.

Drive Train -- Verified

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN" "http://www.w3.org/TR/REC-html40/loose.dtd">
You may be able to prevent transmission problems by servicing the transmission and inspecting the fluid every 30,000 miles. If the fluid is dark or burned then the transmission system should be completely flushed.

2009 Saturn Outlook Recalls (Recent)

Body, Interior & Misc., March 17, 2014

RepairPal Expert Overview:

Increased resistance in the front seat mounted side impact air bag (SIAB) wiring harness can result in the SIAB and seat belt pretensioners not deploying as expected in the event of a crash, increasing the risk of personal injury. Dealers will replace the affected harness connections with soldered connections to correct this concern.

Learn more »

Body, Interior & Misc., August 18, 2010

RepairPal Expert Overview:

When moving the seats from a flat to upright position, the second row seat belt buckle may bind on the second row seat trim shield. This could prevent proper operation and securing of the safety belt, which would increase the risk of injury to an occupant. Dealers will modify the second row seat trim shields. The GM recall number is N100243. This recall began on August 18, 2010.

Learn more »

Body, Interior & Misc., November 26, 2008

RepairPal Expert Overview:

The seat belt buckles in the second or third row seats may be missing a rivet. If a crash occurs, the buckle may separate from the strap, increasing the risk of injury to the passenger. Dealers will inspect the seat belt buckles and replace any as needed.

Learn more »

Drive Train, March 15, 2009

RepairPal Expert Overview:

The shifter cable adjustment may become dislodged. This may cause the vehicle to show that it is in "Park," when it could actually be in another gear. If this happens, the vehicle may move and not be secure. Dealers will inspect the shift cable adjustment clip to make sure it is fully engaged, and will replace any shift cables that cannot be secured. The General Motors recall number is 09041. The recall began on March 24, 2009.

Learn more »

Electrical & Lights, June 11, 2010

RepairPal Expert Overview:

The heated washer module under the hood could overheat due to excessive current draw. Under certain conditions, this could result in an under hood fire. This previous recall attempt in 2008 to repair this concern did not have the expected success. Dealers will now permanently disable and remove the heated washer module to correct this concern. This recall is expected to begin on June 20, 2010.

Learn more »

2009 Saturn Outlook Questions and Answers

CSD2012, 2009 Saturn Outlook, Canton, MI

I bought AC Pro to install, but the gauge wouldn't get out of the red. The Youtube instructions said that it needs refridgerant if it does this. The air is actually working at the moment thoug...
