Resources for the Repair and Maintenance of your 1997 Mazda MX-6

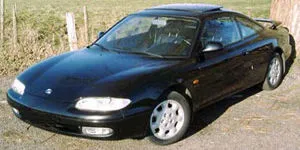

1997 Mazda MX-6

Image for car images Mazda 1993 1997 Mazda MX 6 size thumb

1997 Mazda MX-6 Problems

Electrical & Lights -- Verified

If the engine cranks but will not start, it may be due a failed distributor. In the diagnosis, it may be discovered that the Electronic Engine Control (EEC) Unit is the cause if ignition spark is restored after disconnecting the Spark Output (SPOUT) Connector.

Suspension & Steering -- Verified

A knocking sound heard from the front or rear suspension while driving over rough roads may be caused by the sway bar linkages. The linkages should be inspected for tightness and condition; there are redesigned linkages if replacement is necessary.

Engine -- Verified

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN" "http://www.w3.org/TR/REC-html40/loose.dtd">
Misfires under load (acceleration) can be caused by leaky spark plug boots. When a spark plug boot leaks, it allows the spark to arc, or jump, to the cylinder head. New spark plug wires will be needed.

Electrical & Lights -- Verified

If the engine cranks but does not start, it may be caused by a tripped inertia switch. Switch the key to "ON" and the fuel pump should be heard running for a second or two. Listen at the gas filler if necessary. If you do not hear the pump the inertia switch should be reset, it will "click" when it is reset.

Engine -- Verified

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN" "http://www.w3.org/TR/REC-html40/loose.dtd">
Vehicles with a V6 engine may develop an engine misfire under load (acceleration). This can be caused by a valve cover gasket leaking oil into a spark plug well, shorting the spark plug to the cylinder head. To repair this concern, the valve cover needs to be resealed and the spark plugs and wires should be replaced.

1997 Mazda MX-6 Recalls (Recent)

Engine, November 20, 1998

Summary: VEHICLE DESCRIPTION: PASSENGER VEHICLES. AN EXTERNAL SPRING IN THE TIMING BELT TENSIONER CAN BREAK AND GET CAUGHT IN THE TIMING BELT.

Learn more »

Engine, September 27, 2005

Summary: CERTAIN SPX FILTRAN FUEL FILTERS WITH A 45-DEGREE ANGLE INLET TUBE, MODEL 800F350-S1, SOLD AS REPLACEMENT FILTERS FOR 1993-1997 FORD PROBE,1993-2001 MAZDA 626 AND MX-6, AND 1983-1994 LOYAL, 3-DOOR COUPE, HATCHBACK, SEDAN, WAGON, BRAT, DL, GL, GL-10, RX, XT, AND XT6 PASSENGER VEHICLES WITH EFI OR TURBO ENGINES. THESE FILTERS ARE PACKAGED AS WIX, NAPA, AND CARQUEST BRAND FUEL FILTERS. CERTAIN SPX FILTRAN FUEL FILTERS WITH A 90-DEGREE ANGLE INLET TUBE, MODEL 800F300-S2, SOLD AS REPLACEMENT FILTERS FOR 19983-1994 SUBARU VEHICLES WITH EFI OR TURBO ENGINES. THESE FILTERS ARE PACKAGED AS WIX, NAPA, AND CARQUEST BRAND FUEL FILTERS. FUEL MAY LEAK FROM THE FILTER DUE TO NON-CONFORMING BRAZING WELDS WHERE THE INLET TUBE IS CONNECTED TO THE FILTER CAN.

Learn more »

1997 Mazda MX-6 Questions and Answers

bboard, 1997 Mazda MX-6, 2.5L V6, Greensboro, NC

How do you add transmission fluid to a Mazda MX6 1997?

Pieter, 1997 Mazda MX-6, 2.5L V6, Spring Mount, PA

I do have a Mazda MX6 2.5 V6 1997 MODEL. I had to replace my old motor with a import motor exact same as my old one. Ever sinse no results no spark on plugs. I did replace the distrubiter and cranc...

MX-6, 1997 Mazda MX-6, 2.5L V6, Chicago, IL

the car has been outside in my yard in the weather and the motor has not been started for five years, and has no battery,but when it was being used it ran perfect,and had no problem

sykorobbie, 1997 Mazda MX-6, Adel, IA

what would the estimated cost to fix this problem be

Sandi Mazda, 1997 Mazda MX-6, 2.5L V6, Clinton, IA

The gas pressure has been tested and is ok. The electrical side or circuitry is the one that is not working
