If the engine cranks but will not start, it may be due a failed distributor. In the diagnosis, it may be discovered that the Electronic Engine Control (EEC) Unit is the cause if ignition spark is restored after disconnecting the Spark Output (SPOUT) Connector.
Resources for the Repair and Maintenance of your 1996 Mazda MX-6

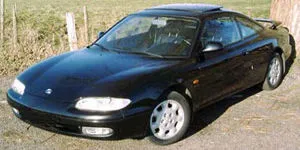

1996 Mazda MX-6
1996 Mazda MX-6 Problems
A knocking sound heard from the front or rear suspension while driving over rough roads may be caused by the sway bar linkages. The linkages should be inspected for tightness and condition; there are redesigned linkages if replacement is necessary.
Misfires under load (acceleration) can be caused by leaky spark plug boots. When a spark plug boot leaks, it allows the spark to arc, or jump, to the cylinder head. New spark plug wires will be needed.
If the engine cranks but does not start, it may be caused by a tripped inertia switch. Switch the key to "ON" and the fuel pump should be heard running for a second or two. Listen at the gas filler if necessary. If you do not hear the pump the inertia switch should be reset, it will "click" when it is reset.
Vehicles with a V6 engine may develop an engine misfire under load (acceleration). This can be caused by a valve cover gasket leaking oil into a spark plug well, shorting the spark plug to the cylinder head. To repair this concern, the valve cover needs to be resealed and the spark plugs and wires should be replaced.
1996 Mazda MX-6 Recalls (Recent)
Summary: VEHICLE DESCRIPTION: PASSENGER VEHICLES EQUIPPED WITH THE SAS SENSOR UNIT. THESE VEHICLES CAN EXPERIENCE AIR BAG DEPLOYMENTS IN MINOR UNDERCARRIAGE IMPACTS.Learn more »
Summary: CERTAIN SPX FILTRAN FUEL FILTERS WITH A 45-DEGREE ANGLE INLET TUBE, MODEL 800F350-S1, SOLD AS REPLACEMENT FILTERS FOR 1993-1997 FORD PROBE,1993-2001 MAZDA 626 AND MX-6, AND 1983-1994 LOYAL, 3-DOOR COUPE, HATCHBACK, SEDAN, WAGON, BRAT, DL, GL, GL-10, RX, XT, AND XT6 PASSENGER VEHICLES WITH EFI OR TURBO ENGINES. THESE FILTERS ARE PACKAGED AS WIX, NAPA, AND CARQUEST BRAND FUEL FILTERS. CERTAIN SPX FILTRAN FUEL FILTERS WITH A 90-DEGREE ANGLE INLET TUBE, MODEL 800F300-S2, SOLD AS REPLACEMENT FILTERS FOR 19983-1994 SUBARU VEHICLES WITH EFI OR TURBO ENGINES. THESE FILTERS ARE PACKAGED AS WIX, NAPA, AND CARQUEST BRAND FUEL FILTERS. FUEL MAY LEAK FROM THE FILTER DUE TO NON-CONFORMING BRAZING WELDS WHERE THE INLET TUBE IS CONNECTED TO THE FILTER CAN.Learn more »
1996 Mazda MX-6 Questions and Answers
I am unable to open my trunk. No driver cable release. It doesn't appaer that ist the locking mechanisn. I can only open via the back seat.
A tiny plastic piece appears to have broken from th...
When i drive it it trys to run hot. Past the middle then bounces back. When i slow down is when it gets the closest to the H.
ok. i checked the coolant level i the radiator that was a little low so i put more in. It didnt help. When im on the highway the temp does fine as soon as i slow down or stop the temp goes up fast....
There is gas, I also change the fuel pump.
