Water intrusion into a connector (X309) located under the cab, beneath the driver's seat, can cause a rough idle, erratic speedometer operation, ABS Light and Check Engine Light illumination, and automatic transmission shifting problems. If needed, connector repair parts are available from Mazda dealers, and possibly some Ford dealers.
Resources for the Repair and Maintenance of your 1998 Mazda B4000

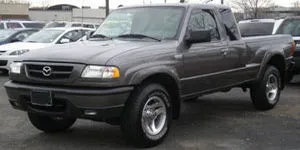

1998 Mazda B4000
1998 Mazda B4000 Problems
If the engine cranks but does not start, it may be caused by a tripped inertia switch. Switch the key to "ON" and the fuel pump should be heard running for a second or two. Listen at the gas filler if necessary. The inertia switch is located on the firewall and can be tripped when the parking brake is set too hard and then released. The inertia switch should be reset, and will click when it is reset.
A dirty, or contaminated mass airflow sensor (MAF) can cause the engine to run poorly. The Check Engine Light may or may not illuminate. MAF sensor related fault codes P0102 and/or P0103 may be stored. In some cases, carefully cleaning the sensor element will fix the problem. If not, replacement of the sensor may be required.
The engine may fail to start due to an electrically shorted sensor. Some of the sensors may internally short and not blow any fuses. A technician may find no spark and no operation of the fuel injectors in the diagnosis. One way a technician may isolate the defective sensor is by disconnecting sensors one by one to see if the engine starts.
1998 Mazda B4000 Recalls (Recent)
RepairPal Expert Overview:
Ford has recalled Firestone Wilderness AT and Radial ATX tires installed on multiple lines of Ford trucks from 1991 to 2000. On some tires, under extreme conditions, the tread could separate, which can cause immediate tire failure. This may lead to a loss of vehicle control, injury, and death. Dealers replaced the affected tires.
Summary: VEHICLE DESCRIPTION: CERTAIN 1998-1998 MAZDA B-SERIES TRUCKS (B2500, B3000 AND B4000) EQUIPPED WITH CRUISE CONTROL AND BUILT FROM JANUARY 1998 THROUGH MARCH 4, 1999. A CRUISE CONTROL CABLE CAN INTERFERE WITH THE SPEED CONTROL SERVO PULLEY AND NOT ALLOW THE THROTTLE TO RETURN TO IDLE WHEN DISENGAGING THE CRUISE CONTROL.Learn more »
Summary: ON CERTAIN TRUCKS EQUIPPED WITH A SPEED CONTROL SYSTEM, THE SPEED CONTROL DEACTIVATION SWITCH MAY, UNDER CERTAIN CONDITIONS, LEAK INTERNALLY AND THEN OVERHEAT, SMOKE, OR BURN.Learn more »
Summary: VEHICLE DESCRIPTION: LIGHT DUTY 4X2 AND 4X4 PICKUP TRUCKS EQUIPPED WITH 4.0L ENGINES. THE FLEXIBLE SECTION OF THE CHASSIS MOUNTED FUEL LINE THAT CONNECTS TO THE ENGINE WAS ROUTED TOO CLOSE TO THE EXHAUST MANIFOLD. THE LINE COULD CONTACT THE MANIFOLD.Learn more »
1998 Mazda B4000 Questions and Answers
Could you please tell me where the oil pan drain plug is for my truck. What I think it is I can't get to budge and I do not want to be wrong.
I tried to buy a manual for this truck bu...
what could cause the the 2 hi and 4 lo 4x4 lights to flash continuously. This happen no matter if I am in 4-wheel drive or not.
My truck beeps. The doors aren't open and the seat belt is on. It beeps for awhile and stops for a while and will start beeping again for no reason. Need a diagram of the fuse panel to check f...
i put my truck into 4wd and not it does not want to disenegage is there a problem with the relay?
1998 Mazda B4000 Reviews
My truck I bought used and is great. It has problem on certian days when it's cold and raining. The truck will crank and try to start but can't. If you have any info about what might be happening please email me at email@example.com.
