Resources for the Repair and Maintenance of your 1996 Mazda B4000

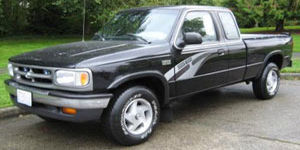

1996 Mazda B4000

Image for car images Mazda 1994 1997 Mazda B4000 size thumb

1996 Mazda B4000 Problems

Engine -- Verified

Water intrusion into a connector (X309) located under the cab, beneath the driver's seat, can cause a rough idle, erratic speedometer operation, ABS Light and Check Engine Light illumination, and automatic transmission shifting problems. If needed, connector repair parts are available from Mazda dealers, and possibly some Ford dealers.

Engine -- Verified

If the engine cranks but does not start, it may be caused by a tripped inertia switch. Switch the key to "ON" and the fuel pump should be heard running for a second or two. Listen at the gas filler if necessary. The inertia switch is located on the firewall and can be tripped when the parking brake is set too hard and then released. The inertia switch should be reset, and will click when it is reset.

Engine -- Verified

The engine may fail to start due to an electrically shorted sensor. Some of the sensors may internally short and not blow any fuses. A technician may find no spark and no operation of the fuel injectors in the diagnosis. One way a technician may isolate the defective sensor is by disconnecting sensors one by one to see if the engine starts.

Engine -- Verified

A dirty, or contaminated mass airflow sensor (MAF) can cause the engine to run poorly. The Check Engine Light may or may not illuminate.  MAF sensor related fault codes P0102 and/or P0103 may be stored. In some cases, carefully cleaning the sensor element will fix the problem. If not, replacement of the sensor may be required.

1996 Mazda B4000 Recalls (Recent)

Drive Train, August 26, 2000

RepairPal Expert Overview:

Ford has recalled Firestone Wilderness AT and Radial ATX tires installed on multiple lines of Ford trucks from 1991 to 2000. On some tires, under extreme conditions, the tread could separate, which can cause immediate tire failure. This may lead to a loss of vehicle control, injury, and death. Dealers replaced the affected tires.

Learn more »

Electrical & Lights, December 11, 2009

Summary: MAZDA IS RECALLING MODEL YEAR 1995 THROUGH 1997 AND MODEL YEAR 2001 THROUGH 2003 TRUCKS EQUIPPED WITH TEXAS INSTRUMENTS SPEED CONTROL DEACTIVATION SWITCH (SCDS) AND/OR ANTI-LOCK BRAKE SYSTEM (ABS) AND MANUFACTURED ON OR BEFORE DECEMBER 5, 2002. A COMPONENT OF THE CRUISE CONTROL DEACTIVATION SWITCH MAY DETERIORATE OVER TIME AND DEVELOP A LEAK. THIS OCCURRENCE COULD CAUSE THE SWITCH TO OVERHEAT, SMOKE OR BURN WHICH COULD RESULT IN AN UNDER HOOD FIRE.

Learn more »

1996 Mazda B4000 Questions and Answers

jlashef, 1996 Mazda B4000, Weatherly, PA

Cigarette lighter dosen't work. I want to try changing the fuse first, but I bought the truck recently used, and there is no owners' manual with it. I need the fuse box diagram to locate ...

mar4553, 1996 Mazda B4000, Auburn, AL

where can i get an online diagram to replace the ball joints on a 1996 madza 4x4 b4000 pickup truck

Visitor, 1996 Mazda B4000, Crossville, TN

do the front wheel bearing have to be pressed?

eddiebrou, 1996 Mazda B4000, Hancock, IA

just need to know where the module is located . I cant find it. Im talking about the ignition control module on a V6 Mazda B4000

eddiebrou, 1996 Mazda B4000, Hancock, IA

where is the ignition control module located ?
