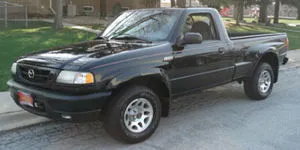

2006 Mazda B3000 Repair and Maintenance

A guide to problems, costs, maintenance and repair for your 2006 Mazda B3000

2006 Mazda B3000 Problems

Check Engine Light Illuminated, code for Camshaft Position Sensor, Runs Poorly

The Check Engine Light may come on and the engine will run poorly. During diagnosis the technician may find a trouble code for the Camshaft Position Sensor (CMP), P0340. It is recommended to check the CMP driveshaft for looseness in the housing because if the shaft is loose, a new sensor will be damaged again. If the shaft has play, the CMP sensor and housing unit will need to be replaced. Our technicians recommend using the factory type timing tool for the replacement procedure.

Runs Poorly, Possible Check Engine Light

A dirty, or contaminated mass airflow (MAF) sensor can cause the engine to run poorly. There may be a Check Engine Light with trouble codes relating to the MAF sensor, P0102 and/or P0103. In some cases, carefully cleaning the sensor element will fix the problem, but replacement may be required.

Crank but No Start Condition and No Fuel Pressure

If the engine cranks but does not start, it may be caused by a tripped inertia switch. Switch the key to "ON" and the fuel pump should be heard running for a second or two. Listen at the gas filler if necessary. The inertia switch is located on the firewall and can be tripped when the parking brake is set too hard and then released. The inertia switch should be reset, and will click when it is reset.

See More Problems (5)

2006 Mazda B3000 Questions

pickupdonotcrankatall (1 answer)

How do I reset the security lockout system? (1 answer)

I accidently touched the starter electrical contact with my metal oil filter wrench and it arched. I replaced the starter relay but there is still no power to the starter, engine will not crank over. I think I tripped the security lock out and would like to know how to reset the security system ...

See More Questions (4)

2006 Mazda B3000 Recalls

Driver's Frontal Air Bag Inflator Ruptures And Sprays Metal Fragments

The driver's frontal air bag inflator may rupture and spray metal fragments upon deployment. This is due to excessive internal pressure in the inflator. Dealers will replace the driver's frontal air bag inflator free of charge to resolve the concern.

Front Passenger Air Bag Defect

In a crash that deploys the passenger front air bag, the inflator of the air bag can rupture, causing metal debris to strike vehicle occupants. Dealers will replace the front passenger air bag inflator free of charge to correct the concern.

The Windshield Motor May Fail Prematurely

The windshield wiper may have been produced without grease applied to the output shaft gear. After a period of continuous use on the high speed setting, this lack of grease could cause the gear teeth to distort or fracture, resulting in the loss of wiper function. An inoperative wiper during inclement weather conditions could cause a crash due to impaired visibility. Dealers will inspect the wiper motor for the presence of grease. Grease will be applied to the wiper motor gears if necessary. The Mazda recall number is 3705K.









See More Recalls (3)
