Water intrusion into a connector located under the cab, beneath the driver's seat, can cause a rough idle, erratic speedometer operation, ABS Light and Check Engine Light illumination, and automatic transmission shifting problems. If needed, connector repair parts are available from Mazda dealers, and possibly some Ford dealers.
Resources for the Repair and Maintenance of your 1996 Mazda B3000

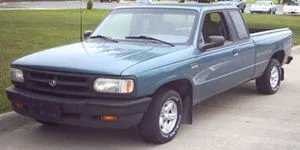

1996 Mazda B3000
1996 Mazda B3000 Problems
The Check Engine Light may come on and the engine will run poorly. During diagnosis the technician may find a trouble code for the Camshaft Position Sensor (CMP), P0340. It is recommended to check the CMP driveshaft for looseness in the housing because if the shaft is loose, a new sensor will be damaged again. If the shaft has play, the CMP sensor and housing unit will need to be replaced. Our technicians recommend using the factory type timin...
A dirty, or contaminated mass airflow (MAF) sensor can cause the engine to run poorly. There may be a Check Engine Light with trouble codes relating to the MAF sensor, P0102 and/or P0103. In some cases, carefully cleaning the sensor element will fix the problem, but replacement may be required.
The engine may fail to start due to an electrically shorted sensor. Some of the sensors may internally short and not blow any fuses. A technician may find no spark and no operation of the fuel injectors in the diagnosis. One way a technician may isolate the defective sensor is by disconnecting sensors one by one to see if the engine starts.
If the engine cranks but does not start, it may be caused by a tripped inertia switch. Switch the key to "ON" and the fuel pump should be heard running for a second or two. Listen at the gas filler if necessary. The inertia switch is located on the firewall and can be tripped when the parking brake is set too hard and then released. The inertia switch should be reset, and will click when it is reset.
1996 Mazda B3000 Recalls (Recent)
RepairPal Expert Overview:
Ford has recalled Firestone Wilderness AT and Radial ATX tires installed on multiple lines of Ford trucks from 1991 to 2000. On some tires, under extreme conditions, the tread could separate, which can cause immediate tire failure. This may lead to a loss of vehicle control, injury, and death. Dealers replaced the affected tires.
Summary: MAZDA IS RECALLING MODEL YEAR 1995 THROUGH 1997 AND MODEL YEAR 2001 THROUGH 2003 TRUCKS EQUIPPED WITH TEXAS INSTRUMENTS SPEED CONTROL DEACTIVATION SWITCH (SCDS) AND/OR ANTI-LOCK BRAKE SYSTEM (ABS) AND MANUFACTURED ON OR BEFORE DECEMBER 5, 2002. A COMPONENT OF THE CRUISE CONTROL DEACTIVATION SWITCH MAY DETERIORATE OVER TIME AND DEVELOP A LEAK. THIS OCCURRENCE COULD CAUSE THE SWITCH TO OVERHEAT, SMOKE OR BURN WHICH COULD RESULT IN AN UNDER HOOD FIRE.Learn more »
1996 Mazda B3000 Questions and Answers
do i need to remove/replace bearings to get rotor off
Check engine light comes on and stays on, or flashes, frequently. Have changed spark plugs, coil, etc. what else could be the cause?
Can I get the "rigid" portion of brakeline (few inches below "flexible" portion) fixed and how much should it cost? (line going to rear wheels).
I was starting up this very steep long hill with my 1996 Mazda B3000 4WD when I noticed the RPM's going way up and the truck seemed to loose power, it got smoky and smelled. I had to back down...
1996 Mazda B3000 Reviews
truck is old now it has never had a problem. I have always hated that mazda (ford) has placed a regulater on the engine to keep it from performing to its best. Lately as soon as it heats up the engine kills and it won't restart until it cools off half an hour later. what's up
