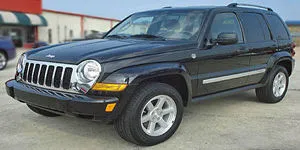

2005 Jeep Liberty Repair and Maintenance

A guide to problems, costs, maintenance and repair for your 2005 Jeep Liberty

2005 Jeep Liberty Problems

Front/Rear Differential Pinion Seal/Transfer Case Leaks are Common

Leaks at the front and/or rear differential pinion seal and from the transfer case are common. Low fluid level in the differential or transfer case can result in bearing failure. Damaged bearings commonly cause a whine or growl type noise.

Check Engine Light/Misfire Due to Intake Valve Locks/Valves

An engine misfire at idle (rough idle), accompanied by illumination or flashing of the Check Engine Light, could indicate a problem with one or more of the intake valves. Revised intake valves & valve locks are available to address this concern.

Engine Will not Start Due to Wireless Control Module Fault

A no crank or no start condition may develop due to electronic lockup of the wireless control module (WCM), also referred to as the Sentry Key Remote Entry Module (SKREEM). When this module fails the remote keyless entry system will also not operate. The WCM is commonly replaced to correct this concern.

See More Problems (17)

2005 Jeep Liberty Questions

Ignition switch is locked past AC (2 answers)

Won't turn over , seems to be locked

Why is my transmission fluid leaking? (1 answer)

I had my transmission rebuilt in November. Since then it has had to go back 5 or 6 times due to small leaks forming that increase over time. They are a reputable place and last time they had it was for 5 days. Now about two months later leaking again. Why is this happening and how should I handle...

My 2005 liberty 3.7 isn't running good (1 answer)

We put new plugs, the check engine light came on the next morning...threw the cylinder 5 code, replaced the coil (nothing), replaced the fuel injector (nothing), replaced the pcm (nothing), we also replaced the asd relay...we can't figure it out! Any suggestions would be appreciated.

See More Questions (84)

2005 Jeep Liberty Recalls

Potential Fuel Tank Leak

It has been determined the fuel tank in these vehicles is at risk of leakage during a rear end collision. To correct this concern dealers will inspect the rear of the vehicle and perform one of the following: A Chrysler designed tow hitch will be installed on vehicles not equipped with a tow hitch, provided the condition of the vehicles can support support proper installation. The tow hitch on vehicles already equipped will be inspected and replaced and/or repaired as necessary, again provided the vehicle is sound and can support proper instillation.

Rear Lower Control Arms May Rust and Break

Certain vehicles sold in, or currently registered in, states where road salt is commonly used to de-ice the roads are being recalled because the rear suspension lower control arm may fracture due to excessive corrosion. A fracture of the rear lower control arm may result in a loss of vehicle control, which can lead to a vehicle crash. Dealers will replace the rear lower control arms on all affected vehicles originally sold in, or currently registered in the National Highway Traffic & Safety Administration (NHTSA) defined "Salt Belt" states. The Chrysler recall number is L27.

Recall 06V288000
ON CERTAIN TRUCKS, THE CONSTANT TENSION FRONT LOWER BALL JOINTS MAY EXPERIENCE CONTAMINATION. IF THE VEHICLE IS OPERATED FOR AN EXTENDED PERIOD WITH THIS CONDITION, THE BALL JOINT MAY EVENTUALLY EXPERIENCE WEAR AND LOOSENESS.

See More Recalls (4)

2005 Jeep Liberty Reviews

I have a 2005 Renegade. I like the flat hood design on these off-road versions of the Liberty. Here's more proof the Liberty Jeep Renegade is practically perfect: Front-to-Rear locking differential; Jeep-worthy 4wd capability; True low range gearing; Tow bar compatible (you can disengage all four wheels from the engine by placing the x-fer case in "neutral"); Factory tow package; Light bar (...
I have this jeep, so far I have had to replace rear window assembly, all new rotors and brakes, struts rear shocks, new a/c compressor, gas milage sucks, but power still there at 145,000 miles. The only problem i have now is steering. When im driving and turn rigt or left it sounds like its scraping, like when you go over a bump the front end sounds like a carriage, that needs to be oiled. Stil...
I own the Common Rail Diesel (CRD) Version of this vehicle and I have only had this in the shop twice, both times for factory recalls. I tow a utility trailer often with this vehicle with often over 4000 lbs of cargo. I hope to keep this vehicle a long time and am very happy with it.

See More Reviews (5)
