Resources for the Repair and Maintenance of your 2001 Ford Ranger

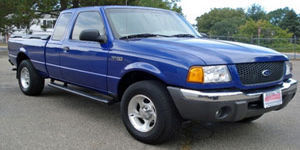

2001 Ford Ranger

Image for car images Ford 2001 2003 Ford Ranger size thumb

2001 Ford Ranger Problems

Engine -- Verified

The engine may misfire and/or buck while driving at freeway speeds with no fault code stored in the powertrain control module (PCM). This can be caused by an intermittent fault with the camshaft synchronizer assembly. This condition can be diagnosed by monitoring knock sensor data as per Ford service bulletin #05-22-12. Replacement of the synchronizer assembly will be required to correct this concern.

Engine -- Verified

The synchronizer shaft for the camshaft position sensor can cause a loud squeak or chirping noise due to failure of the upper bushing. The noise may be erratic and is usually present when the engine is warm.

Engine -- Verified

The magnet for the camshaft position sensor may fall out of its mount and damage the synchronizers. This causes long crank times when starting the engine and may cause the Check Engine Light to illuminate. If this happens, both the magnets and the synchronizers need to be replaced.

Engine -- Verified

A buzzing type noise may be noted from upper engine area at about 1900 RPM, under light acceleration. Our technicians tell us this can be caused by loose ignition coil bracket bolts. Coil bracket bolts should be checked for the correct torque before further diagnoses is performed.

Engine -- Verified

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN" "http://www.w3.org/TR/REC-html40/loose.dtd">
A rattling noise from the engine may indicate that the timing chain cassette is worn. Our technicians tell us that installing an updated cassette and timing chain tensioner should correct this concern.

2001 Ford Ranger Recalls (Recent)

Body, Interior & Misc., July 25, 2001

Summary: VEHICLE DESCRIPTION: PASSENGER AND SPORT UTILITY VEHICLES, PICKUP TRUCKS, AND MINIVANS. EQUIPPED WITH SEAT BELTS SUPPLIED BY TRW. IT IS POSSIBLE THAT THE DRIVER'S AND/OR FRONT PASSENGER'S OUTBOARD SEAT BELT BUCKLE MAY NOT FULLY LATCH. FORD CROWN VICTORIA BUILT AT ST. THOMAS ASSEMBLY PLANT FROM 4/17/00 - 5/29/01 MERCURY GRAND MARQUIS BUILT AT ST. THOMAS ASSEMBLY PLANT FROM 4/17/00 - 5/29/01. LINCOLN TOWN CARS BUILT AT WIXOM ASSEMBLY PLANT FROM 3/27/00 - 5/30/01. LINCOLN NAVIGATORS BUILT AT MICHIGAN TRUCK PLANT FROM 4/11/00 - 5/31/01. FORD WINDSTARS BUILT AT OAKVILLE ASSEMBLY PLANT FROM 3/23/00 - 5/30/01. FORD RANGERS BUILT AT TWIN CITIES PLANT FROM 3/28/00 - 5/30/01, AND ALSO AT THE EDISON PLANT FROM 3/13/00 - 5/25/01. FORD F-150 TRUCK BUILT AT NORFOLK PLANT FROM 4/18/00 - 5/25/00; AT ONTARIO PLANT FROM 5/10/00 - 5/28/01; AT KANSAS CITY PLANT FROM 9/11/99 - 5/25/01; AND AT CUAUTITLAN PLANT FROM 5/16/00 - 6/9/01. FORD SUPER DUTY F-250, F-350, F-450, AND F-550 TRUCKS BUILT AT KENTUCKY PLANT FROM 4/17/00 - 5/27/01; AND AT CUAUTITLAN PLANT FROM 5/16/00 - 6/19/01. FORD EXCURSIONS BUILT AT KENTUCKY PLANT FROM 4/17/00 - 10/2/00. FORD EXPEDITIONS BUILT AT MICHIGAN TRUCK PLANT FROM 4/11/00 - 5/31/01.

Learn more »

Body, Interior & Misc., January 23, 2001

RepairPal Expert Overview:

Ford has recalled 2001 Explorer Sport Trac and Ranger trucks because the hood latch striker may fail. This may cause the hood to fly up, which may cause a loss of visibility and vehicle control. Dealers will replace the hood latch striker.

Learn more »

Drive Train, June 4, 2001

Summary: THIS IS NOT A SAFETY RECALL IN ACCORDANCE WITH THE SAFETY ACT. HOWEVER, IT IS DEEMED A SAFETY IMPROVEMENT CAMPAIGN BY THE AGENCY. EQUIPMENT DESCRIPTION: FORD IS REPLACING ALL FIRESTONE WILDERNESS AT 15, 16, AND 17 INCH TIRES MOUNTED ON FORD TRUCKS AND SUVS. FORD REPORTS TREAD SEPARATION CAN OCCUR DUE TO A COMBINATION OF THE SENSITIVITY OF THE TIRE DESIGN TO STRESS, AGING, AND MANUFACTURING DIFFERENCES BETWEEN PLANTS. FORD IS REPLACING THESE TIRES TO PREVENT POSSIBLE PREMATURE TIRE FAILURE. VEHICLE DESCRIPTION: THE VEHICLES LISTED BELOW MAY HAVE BEEN ORIGINALLY EQUIPPED WITH FIRESTONE WILDERNESS AT TIRES OR MAY HAVE HAD WILDERNESS AT TIRES INSTALLED DURING THE FIRESTONE RECALL LAUNCHED IN AUGUST 2000. CERTAIN 1991 THROUGHT 2002 FORD EXPLORER CERTAIN 2001 THROUGHT 2002 EXPLORER SPORT, AND SPORT TRAC CERTAIN 1997 THROUGH 2002 MERCURY MOUNTAINEER CERTAIN 1991 THROUGH 2001 RANGER CERTAIN 1999 THROUGH 2001 EXPEDITION CERTAIN 1991 THROUGH 1994, AND 1997 MODEL YEAR F-SERIES CERTAIN 1991 THROUGH 1994 BRONCO NOTE: BOTH ORIGINAL EQUIPMENT AND REPLACEMENT TIRES ARE AFFECTED.

Learn more »

Drive Train, August 13, 2007

Summary: ON CERTAIN PICKUP TRUCKS, PASSENGER VEHICLES, SPORT UTILITY VEHICLES, AND MOTOR HOMES CHASSIS, THE SPEED CONTROL DEACTIVATION SWITCH MAY, UNDER CERTAIN CONDITIONS, LEAK INTERNALLY AND THEN OVERHEAT, SMOKE, OR BURN.

Learn more »

2001 Ford Ranger Questions and Answers

airframer1973, 2001 Ford Ranger, 4.0L V6, Aurora, CO

First, when I crank the engine cold, the temp gauge will not move until the truck is being driven. Even after 15/20 minutes of idleing. Second, after temp gauge is showing "normal operating te...

irishjimmy, 2001 Ford Ranger, 3.0L V6, Chicago, IL

The overdrive light on the dash keeps on blinking. Where do I find a manual to be able to fix this problem.

spoxlogic, 2001 Ford Ranger, 3.0L V6, Davenport, FL

when it has been running for at least 5 min.then it will suddenly go to hot and the check gage light appears.then i have to turn my heat on to cool it down

calvin_tn, 2001 Ford Ranger, V6, Cleveland, TN

When I first turn my air on it is not very cool.....however after 3 to 5 minutes it gets very cold.....I think it has something to do with the switch.....

larrynet1224, 2001 Ford Ranger, 4.0L V6, Omaha, NE

Engine Light Always on and can I reset it

Write a Review About Your Car

2001 Ford Ranger Reviews

I have a 2001 ranger with a 2.3 and it has 312,000 miles on it . never anything major done to it . just normal fixes . drive it 145 miles everyday . uses no oil . still get average of 28 mpg . very pleased

So far so good, a/c is being repaired today. The evaporator has gone bad.

I own a 2001 Ford Ranger XLT and for the most part I've been happy with it until recently. I've had to have most of the entire front end steering and suspension replaced in it just after 50,000 miles and now it's developed an engine miss. Had it tuned up with new plugs, wires and a fuel filter and it ran great for about 4 days and now it's back to the same thing. The AM/FM CD Radio in these things are pretty worthless to say the least. Got a CD stuck in the player and finally had it removed by an ASE Ford Tech and now it does'nt work at all. But for the most part, I'm happy with it. You get what you pay for, and FORD is #1 in my book.

We bought this used in 2003 and really like the truck, even though we've had a few problems. The transmission was replaced prior to us buying it according to our Carfax report. It has had a few problems with the oil pressure sending unit, egr, dpf sensor (the check engine light came on each time)around 110,000 miles. Blower motor for heat/AC went bad at 115,000 miles: Last year the steering wheel shaft completely snapped-couldn't steer (thank goodness it happened when we were leaving our driveway!)-also, clock spring broke at the same time. But, for over a year and a half now-now problems-just maintanence. Don't think we would buy this particular truck again-maybe an F-150 next time .

Truck has relatively low miles. It is used for highway travel to our cabin. The last four miles is on a rough road, so the ball joints are starting to fail. The clutch slave cylinder was just replaced, along with new tires, and a new windshield. New front brake pads have also been installed.
