Resources for the Repair and Maintenance of your 2004 Ford E-250

2004 Ford E-250

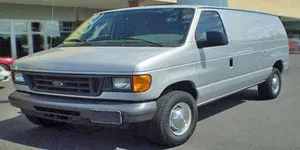

Image for car images Ford 2003 2007 Ford E 250 size thumb

2004 Ford E-250 Problems

Electrical & Lights -- Verified

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN" "http://www.w3.org/TR/REC-html40/loose.dtd">
The Check Engine Light may illuminate, the engine may run rough and have misfires on acceleration. Commonly the ignition coils and/or the ignition coil boots are the cause of this problem. The rubber boot that insulates the coil to the spark plug can dry and crack allowing arcing. Inspect the coils and boots, and replace them as needed. ...

Engine -- Verified

Engine oil may leak externally from the cylinder head gasket. The gaskets were contaminated with metal debris from the factory – between the block and gasket and/or the head and gasket. To correct, the head gasket must be replaced and the mating surfaces on the cylinder head and block need to be inspected for chips or damage. In some cases the cylinder head will not be repairable and will need replacement.

Engine -- Verified

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN" "http://www.w3.org/TR/REC-html40/loose.dtd">
The spark plugs may become dislodged from the cylinder heads. A loud popping noise can be heard and a subsequent misfire experienced. The threads on the spark plug ports in the cylinder head(s) can become stripped or missing when the spark plug is dislodged. The threads in cylinder heads may be replaced using “Lock-N-Stitch” aluminum i...

Suspension & Steering -- Verified

The front end may make a rattle noise over bumps. There may be handling issues, and play in the front wheels on inspection. If there is up and down movement on the front wheels while the lower control arms are being supported, inspect the upper and lower ball joints for excessive play. These are prone to failure from moisture entry and lack of lubrication. The ball joints should be replaced as needed.

Heating & Air Conditioning -- Verified

Electrolysis can cause repeated failures of the heater core and radiator. The diagnosing technician should check for voltage present in the coolant, with the battery disconnected, because electrical current in the coolant causes electrolysis. Corroded or deteriorated parts should be replaced, and the coolant should be flushed. Ground straps can be added to help prevent future corrosion of components.

2004 Ford E-250 Recalls (Recent)

Body, Interior & Misc., August 23, 2004

Summary: ON CERTAIN VANS BUILT ON FORD E250/E350 CHASSIS AND EQUIPPED WITH SURE-LOK WHEELCHAIR SECUREMENT SYSTEMS, THE SPROCKET TEETH OF THE RETRACTOR ASSEMBLY IS OUT OF ALIGNMENT.

Learn more »

Electrical & Lights, October 15, 2004

RepairPal Expert Overview:

An internal diode in the Anti-Lock Braking System module may short circuit. This could cause the ABS Warning Light to illuminate, or the module may overheat resulting in a burning smell and/or fire. This may happen while the vehicle is being driven, or while unattended. Dealers will install a new fuse in the ABS circuit and install a heat shield over the ABS module. The recall began October 15, 2004. The Ford recall number is 04S22.

Learn more »

Electrical & Lights, July 7, 2011

RepairPal Expert Overview:

An internal fault may develop within the multi-function turn signal switch. This can affect turn signal, tail, hazard, and/or brake light operation. Non-functioning exterior lights could increase the risk of a crash. Dealers will replace the multi-function switch to correct this concern. This recall is scheduled to begin on August 15, 2011. The Ford recall number is 11C18.

Learn more »

Engine, September 27, 2004

RepairPal Expert Overview:

A change to the manufacturing of the air filter element may allow it to smolder or burn if contacted by hot carbon particles. This could lead to damage of the air intake system or an underhood fire. Dealers will inspect and replace the air filter element. The began September 27, 2004. The Ford recall number is 04S23.

Learn more »

2004 Ford E-250 Questions and Answers

Visitor, 2004 Ford E-250, 4.6L V8, South Yarmouth, MA

Typiccaly how many hours to changeout a used transmission on the abov van. Trying to judge cost factor. Have the tranny, need to know how long to put in.

Shavkat, 2004 Ford E-250, 5.4L V8, Brooklyn, NY

hello how are ya guys i just went to the repair shop to check on my ac they take a look at it could not find anything when i drive when i turn on my AC it works fine 30 to 40 min then it stops when...

mof, 2004 Ford E-250, 5.4L V8, Mobile, AL

show picture of spark plugs
