The Check Engine Light may illuminate, the engine may run rough and have misfires on acceleration. Commonly the ignition coils and/or the ignition coil boots are the cause of this problem. The rubber boot that insulates the coil to the spark plug can dry and crack allowing arcing. Inspect the coils and boots, and replace them as needed. Our technicians also recommend replacing the coil boots any time the spark plugs are replaced.
Resources for the Repair and Maintenance of your 2009 Ford E-150

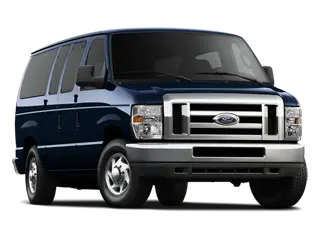

2009 Ford E-150
2009 Ford E-150 Problems
Engine oil may leak externally from the cylinder head gasket. The gaskets were contaminated with metal debris from the factory – between the block and gasket and/or the head and gasket. To correct, the head gasket must be replaced and the mating surfaces on the cylinder head and block need to be inspected for chips or damage. In some cases the cylinder head will not be repairable and will need replacement.
The front end may make a rattle noise over bumps. There may be handling issues, and play in the front wheels on inspection. If there is up and down movement on the front wheels while the lower control arms are being supported, inspect the upper and lower ball joints for excessive play. These are prone to failure from moisture entry and lack of lubrication. The ball joints should be replaced as needed.
Electrolysis can cause repeated failures of the heater core and radiator. The diagnosing technician should check for voltage present in the coolant, with the battery disconnected, because electrical current in the coolant causes electrolysis. Corroded or deteriorated parts should be replaced, and the coolant should be flushed. Ground straps can be added to help prevent future corrosion of components.
2009 Ford E-150 Recalls (Recent)
RepairPal Expert Overview:
101 vehicles altered by Roush Racing to operate using the Roush Cleantech Propane Autogas may develop a fuel leak. This is due to improperly seated fuel injector retention clips. Fuel leaks always increase the risk of a fire. Roush will replace the retaining clips to correct this concern.
2009 Ford E-150 Questions and Answers
150k miles. Is that too many to think of buying this van?
I plan on driving it at least another 100k. dealer says all scheduled maintaince was done. what do you think?
2009 Ford E-150 Reviews
I like the body style, especially the front end with the big lights and the chrome grille package. the brakes are great, but they are a little touchy. the drivetrain is very smooth. almost don't notice the transmission shifting. though the lights are working properly I would like to see some on the doors for when a person exits the vehicle. Though the engine appears to be reliable I feel it lacks the power necessary for such a large machine. The exhaust is quiet which is great for my business, but I personally think the manufacturer should greatly consider high performance air intake filters and a nice 3" exhaust just to boost the horsepower in order to save on gas and it also helps the engine to breathe better which would put less strain on it ultimately increasing engine life/performance. Both heating and a/c are working and very powerful. I like the suspension, but the steering is much tougher than my other vehicle which is 7 years older. Overall on a scale of 1-10 I personally rate this vehicle as a 7. Though I have not owned the van very long and it is brand new I know the ball-joints are gonna be a problem. I really wish FORD would do something about that! It has been such an issue for so long. I'm not sure what they are waiting for. I also have the high-back seats (driver&front pass.). The top of the seat forces me to tip my head forward which after a while becomes very uncomfortable. I think it should go straight up rather than curve forward. Ultimately it's not a bad buy, but I have not testdrove any other makes (CHEVY,DODGE etc.). Hope this rating helps all who read it.
