The Check Engine Light may illuminate, the engine may run rough and have misfires on acceleration. Commonly the ignition coils and/or the ignition coil boots are the cause of this problem. The rubber boot that insulates the coil to the spark plug can dry and crack allowing arcing. Inspect the coils and boots, and replace them as needed. Our technicians also recommend replacing the coil boots any time the spark plugs are replaced.
Resources for the Repair and Maintenance of your 2004 Ford E-150

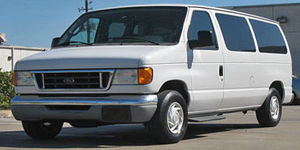

2004 Ford E-150
2004 Ford E-150 Problems
Engine oil may leak externally from the cylinder head gasket. The gaskets were contaminated with metal debris from the factory – between the block and gasket and/or the head and gasket. To correct, the head gasket must be replaced and the mating surfaces on the cylinder head and block need to be inspected for chips or damage. In some cases the cylinder head will not be repairable and will need replacement.
The front end may make a rattle noise over bumps. There may be handling issues, and play in the front wheels on inspection. If there is up and down movement on the front wheels while the lower control arms are being supported, inspect the upper and lower ball joints for excessive play. These are prone to failure from moisture entry and lack of lubrication. The ball joints should be replaced as needed.
Electrolysis can cause repeated failures of the heater core and radiator. The diagnosing technician should check for voltage present in the coolant, with the battery disconnected, because electrical current in the coolant causes electrolysis. Corroded or deteriorated parts should be replaced, and the coolant should be flushed. Ground straps can be added to help prevent future corrosion of components.
The spark plugs may become dislodged from the cylinder heads. A loud popping noise can be heard and a subsequent misfire experienced. The threads on the spark plug ports in the cylinder head(s) can become stripped or missing when the spark plug is dislodged. The threads in cylinder heads may be replaced using “Lock-N-Stitch” aluminum inserts. Our technicians tell us thread replacement is performed when the vehicle is out of base wa...
2004 Ford E-150 Recalls (Recent)
RepairPal Expert Overview:
An internal diode in the Anti-Lock Braking System module may short circuit. This could cause the ABS Warning Light to illuminate, or the module may overheat resulting in a burning smell and/or fire. This may happen while the vehicle is being driven, or while unattended. Dealers will install a new fuse in the ABS circuit and install a heat shield over the ABS module. The recall began October 15, 2004. The Ford recall number is 04S22.
RepairPal Expert Overview:
A change to the manufacturing of the air filter element may allow it to smolder or burn if contacted by hot carbon particles. This could lead to damage of the air intake system or an underhood fire. Dealers will inspect and replace the air filter element. The began September 27, 2004. The Ford recall number is 04S23.
2004 Ford E-150 Questions and Answers
where is the vent valve located at on a 2004 ford econoline e150 van 4.6 engine..when i try to fill it up with gas it shuts off or acts like it is full and wont allow any more gas to go in..it also...
The code is reading bad crankshaft sensor
My windshield squirters have very little pressure, they barely hit the windshield. I can hear the motor when I hit the switch bot very little fluid comes out?
